Screwable

ACTEK^® Hoist rings rotate 360° and swivel 180°. Easy mounting and 200% proof load tested.

200% proof load tested
Serial numbers for traceability
Rotates 360° and swivels 180°
Magnetic partical inspected
Easy mounting, only one thread or hole is required

High end hoist ring with 5:1 safety factor. High load capacities with small threads. Rotatess 360° and swivels 180°. Optimum of alignment in the direction of the loads.

Read safety instructions! Imperical sizes go to SHRZ-Series. Special sizes on request.
Technical changes and misconceptions reserved.
* SF = Safety factor **not a standard part, eventually not in stock

ACTEK SHR-Series Specials:

5:1 safety factor
200% proof load tested
Serial numbers for traceability
Rotates 360° and swivels 180°
Magnetic partical inspected
Easy mounting, only one thread or hole is required

Name	Article Number	Load Weight 5:1 (kg)	Load Weight 4:1 (kg)	Thread	A	B	C	D	E	F	G	H	Max. tightening torque (Nm)	Weight (kg)
ACTEK SHR 400	200.046.912	400	500	M8	11	32	18	10	13	68	47	24	9	0.17
ACTEK SHR 500	200.046.916	500	625	M10	11	30	18	10	18	68	47	25	16	0.17
ACTEK SHR 1050	200.046.924	1050	1312	M12	22	60	30	19	19	121	89	51	37	1.08
ACTEK SHR 1050N	200.046.608	1050	1312	M12	18	48	24	13	27	96	66	38	37	0.4
ACTEK SHR 1900	200.046.930	1900	2375	M16	22	56	30	19	29	121	89	51	80	1.12
ACTEK SHR 2150	200.046.936	2150	2687	M20	22	52	30	19	34	121	89	51	135	1.19
ACTEK SHR 3000	200.046.942	3000	3750	M20	36	78	43	25	32	166	131	76	135	3.03
ACTEK SHR 4200	200.046.948	4200	5250	M24	36	74	43	25	37	166	131	76	311	3.1
ACTEK SHR 4200	200.046.950	4200	5250	M30	36	108	43	25	58	206	131	76	637	3.1
ACTEK SHR 7000	200.046.956	7000	8750	M30	45	106	54	32	42	222	165	95	637	6.3
ACTEK SHR 7000**	200.046.960	7000	8750	M33	45	103	54	32	67	222	165	95	637	6.3
ACTEK SHR 11000	200.046.966	11000	13750	M36	57	166	71	44	63	317	217	124	1085	15.5
ACTEK SHR 12500	200.046.968	12500	15625	M42	57	160	71	44	83	317	217	124	1085	16
ACTEK SHR 13500	200.046.970	13500	16875	M48	57	154	71	44	83	317	217	124	1085	16.8
ACTEK SHR 22300	200.046.972	22300	27875	M64	76	204	103	57	101	428	271	165	2847	39
ACTEK SHR 31500	200.046.988	31500	39375	M72	95	220	133	70	132	495	359	206	5830	74
ACTEK SHR 24500**	200.046.989	24500	30625	M72	76	196	103	57	107	428	271	165	5830	41.8
ACTEK SHR 44600	200.046.990	44600	55750	M90	102	235	153	83	177	561	404	218	6914	118
ACTEK SHR 1050L	200.047.124	1050	1312	M12	22	110	30	19	19	171	89	51	37	1.08
ACTEK SHR 1900L	200.047.130	1900	2375	M16	22	106	30	19	29	171	89	51	80	1.12
ACTEK SHR 2150L	200.047.136	2150	2687	M20	22	102	30	19	34	171	89	51	135	1.19
ACTEK SHR 3000L	200.047.142	3000	3750	M20	36	118	43	25	32	206	131	76	135	3.03
ACTEK SHR 4200L	200.047.148	4200	5250	M24	36	114	43	25	37	206	131	76	311	3.1
ACTEK SHR 2850**	200.049.303	2850	3562	M24	22	48	30	19	39	121	89	51	311	1.36
ACTEK SHR 5000**	200.049.304	5000	6250	M33	36	65	42	25	47	166	131	76	637	3.9
ACTEK SHR 5500**	200.049.305	5500	6875	M36	36	62	43	25	57	166	131	76	637	3.9
ACTEK SHR 8500**	200.049.306	8500	10625	M36	45	100	54	32	56	222	165	95	1085	7.3
ACTEK SHR 9000**	200.049.307	9000	11250	M39	45	97	54	32	56	222	165	95	1085	7.8
ACTEK SHR 10000**	200.049.311	10000	12500	M48	45	88	54	32	66	222	165	95	1085	8.2
ACTEK SHR 14500	200.049.312	14500	18125	M52	57	150	71	44	88	317	217	124	1085	19.1
ACTEK SHR 15500**	200.049.313	15500	19375	M56	57	146	71	44	88	317	217	124	1085	19.1
ACTEK SHR 16500	200.049.314	16500	20625	M64	57	138	71	44	88	317	217	124	2847	19.1
ACTEK SHR 26500**	200.049.316	26500	33125	M80	76	188	103	57	117	428	271	165	5830	41.8
ACTEK SHR 33000**	200.049.317	33000	41250	M90	95	200	133	70	140	495	359	206	6914	127.3

ACTEK SSHR-Series

5:1 safety factor in stainless steel, identical with SHR-Series. Rotates 360° and swivels 180°.

Read safety instructions! Imperial sizes on request. Technical changes and misconceptions reserved.

ACTEK SSHR-Series Specials:

5:1 safety factor
200% proof load tested
Serial number for traceability
Rotates 360° and swivels 180°
Magnetic partical inspected
Easy mounting – only one hole or thread necessary
Stainless steel

Name	Article Number	Load Weight 5:1 (kg)	Load Weight 4:1 (kg)	Thread	A	B	C	D	E	F	G	H	Max. tightening torque (Nm)	Weight (kg)
ACTEK SSHR 200	200.058.912	200	250	M8	11	32	18	10	13	65	47	25	4	0.17
ACTEK SSHR 250	200.058.916	250	312	M10	11	30	18	10	18	68	47	25	8	0.17
ACTEK SSHR 525	200.058.924	525	656	M12	22	60	30	19	19	121	89	51	18	1.08
ACTEK SSHR 950	200.058.930	950	1.187	M16	22	56	30	19	29	121	89	51	40	1.12
ACTEK SSHR 1075	200.058.936	1.075	1.343	M20	22	52	30	19	34	121	89	51	68	1.19
ACTEK SSHR 1500	200.058.942	1.500	1.875	M20	36	78	43	252	32	166	131	76	68	3.03
ACTEK SSHR 2100	200.058.948	2.100	2.625	M24	36	74	43	25	37	166	131	76	108	3.1
ACTEK SSHR 2100	200.058.950	2.100	2.625	M30	36	108	43	25	58	206	131	76	318	3.1
ACTEK SSHR 3500	200.058.956	3.500	4.375	M30	45	106	54	32	42	222	165	95	318	6.3
ACTEK SSHR 5500	200.058.966	5.500	6.875	M36	57	166	71	44	64	317	217	124	542	16
ACTEK SSHR 6250	200.058.968	6.250	4.812	M42	57	160	71	44	82	317	217	124	542	16
ACTEK SSHR 6750	200.058.970	6.750	8.437	M48	57	154	71	44	82	317	217	124	542	16
ACTEK SSHR 11150	200.058.972	11.150	13.937	M64	76	204	103	57	101	428	296	165	1423	39
ACTEK SSHR 15750	200.058.988	15.750	19.687	M72	95	220	133	7	132	495	359	206	2915	74
ACTEK SSHR 22300	200.058.990	22.300	27.875	M90	102	235	153	83	177	561	404	218	3459	118
ACTEK SSHR 525L	200.059.124	515	656	M12	22	110	30	19	19	171	89	51	18	1.08
ACTEK SSHR 950L	200.059.130	950	1.187	M16	22	106	30	19	29	171	89	51	1.12	-
ACTEK SSHR 1075L	200.059.136	2.075	1.343	M20	22	102	30	19	34	171	89	51	68	1.19
ACTEK SSHR 1500L	200.059.142	1.500	1.875	M20	36	118	43	25	32	206	131	76	68	3.03
ACTEK SSHR 2100L	200.059.148	2.100	2.625	M24	36	114	43	25	37	206	131	76	108	3.1

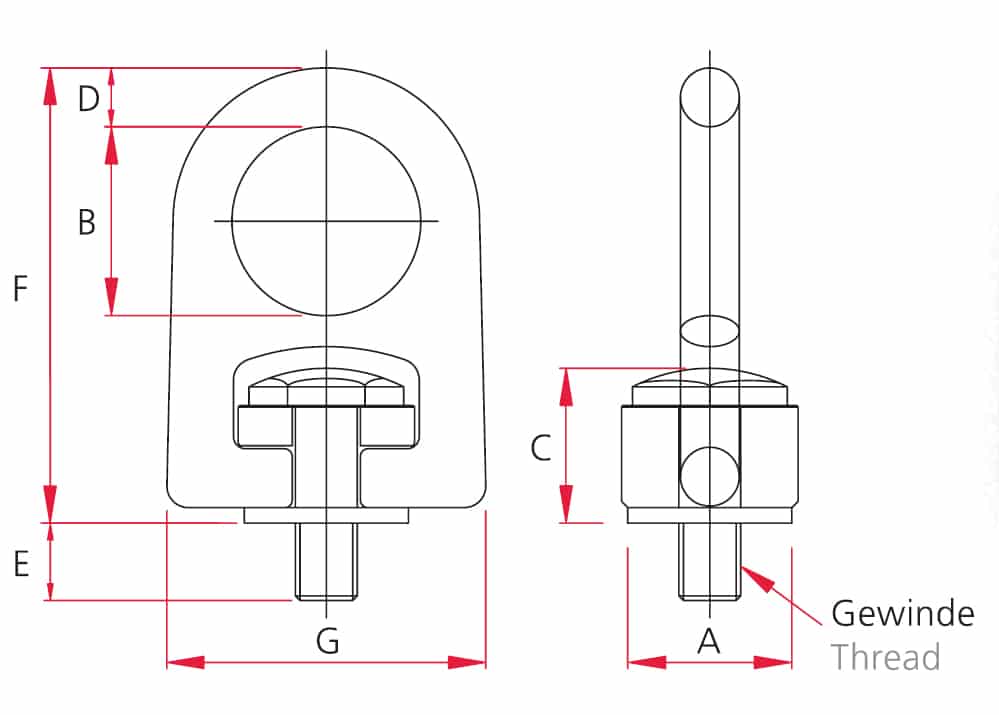

ACTEK HD-Series

Heavy duty forged hoist ring with different thread sizes. Rotates 360° and swivels 180°. Optimum of alignment in the direction of the loads.

Read safety instructions! Imperial sizes on request. Technical changes and misconceptions reserved.

ACTEK HD-Series Specials:

5:1 Safety factor
200% proof load tested
Serial numbers for traceability
Rotates 360° and swivels 180°
Magnetic partical inspected
Easy mounting, only one thread or hole is required

Name	Article Number	Load Weight 5:1 (kg)	Load Weight 4:1 (kg)	Thread	A	B	C	D	E	F	G	Max. tightening torque (Nm)	Weight (kg)
ACTEK HD 400	200.056.912	400	500	M8	32	36	30	11	15	84	61	9	0.35
ACTEK HD 500	200.056.916	500	625	M10	32	36	30	11	15	84	61	16	0.35
ACTEK HD 1050	200.056.924	1.050	1.312	M12	54	61	50	19	25	142	103	37	1.80
ACTEK HD 1900	200.056.930	1.900	2.375	M16	54	61	50	19	25	142	103	80	1.80
ACTEK HD 2150	200.056.936	2.150	2.687	M20	54	61	50	19	25	142	103	135	1.80
ACTEK HD 3000	200.056.942	3.000	3.750	M20	71	82	67	25	30	190	138	135	4.10
ACTEK HD 4200	200.056.948	4.200	5.250	M24	71	82	67	25	40	190	138	311	4.10
ACTEK HD 4500	200.056.949	4.500	5.625	M30	71	82	67	25	40	190	138	637	4.10
ACTEK HD 7000	200.056.956	7.000	8.750	M30	89	102	84	32	50	238	172	637	8.70
ACTEK HD 11000	200.056.966	11.000	13.750	M36	89	102	84	32	65	238	172	1085	9.10
ACTEK HD 12500	200.056.968	12.500	15.625	M42	89	102	84	32	80	238	172	1085	9.60

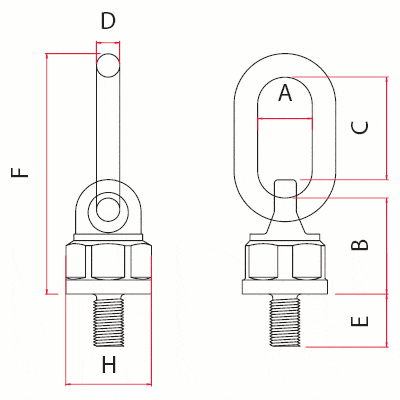

ACTEK ULR-Series

The ball-bearing ULR-Series attachment points are ideal for tooling. Injection and punching tools unroll in a smooth movement.

Read safety instructions! Imperial sizes on request. Technical changes and misconceptions reserved.

ACTEK ULR-Series Specials:

4:1 safety factor
Ball bearings
Rotates 360° and swivels 180°
200% proof load tested
Magnetic partical inspected
Easy mounting

Name	Article Number	Load Weight (kg)	Thread	A	B	C	D	E	F	G	H
ACTEK ULR400	200.044.302	400	M8	28	38	31	8	12	88	-	36
ACTEK ULR500	200.044.304	500	M10	28	38	31	8	15	88	-	36
ACTEK ULR1050	200.044.310	1.050	M12	35	63	57	13	20	148	-	60
ACTEK ULR1150	200.044.312	1.150	M14	35	63	57	13	20	148	-	60
ACTEK ULR1900	200.044.314	1900	M16	35	63	57	13	25	148	-	60
ACTEK ULR2150	200.044.320	2.150	M20	38	76	70	19	25	179	-	70
ACTEK ULR2250	200.044.322	2.250	M22	38	76	70	19	32	179	-	70
ACTEK ULR4200	200.044.324	4.200	M24	38	76	70	19	32	179	-	70
ACTEK ULR5000	200.044.346	5.000	M30	51	89	89	22	50	226	-	74
ACTEK ULR7000	200.044.348	7.000	M33	51	89	89	22	50	226	-	74
ACTEK ULR8000	200.044.350	8.000	M36	51	89	89	22	54	225	-	74
ACTEK ULR8000	200.044.355	8000	M39	51	89	89	22	58	226	-	74
