ACTEK SHR-Kit
The kit enables to custom build up to 24 different SHR hoist rings between 1.050 kg and 4.200 kg load capacity. The sizes in the kit are from 1050 up to 4200 kg. The Kit includes 4 off each required D-Ring.
A handy accessory kit for lifting and moving loads and a must for your tool box.
Read safety instructions! Technical changes and misconceptions reserved.
Read safety instructions! Technical changes and misconceptions reserved.
ACTEK SHR-Series Specials:
- 5:1 Safety factor
- 200% proof load tested
- Serial numbers for traceability
- Rotates 360° and swivels 180°
- Magnetic partical inspected
- Easy mounting, only one thread or hole is required

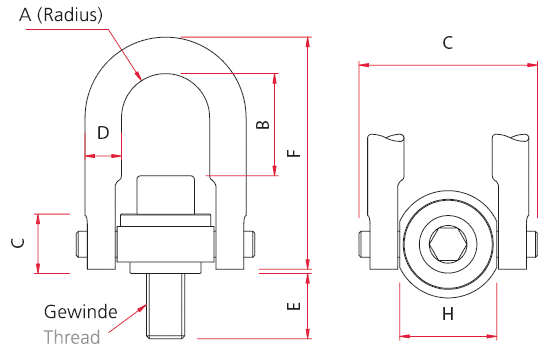

| Name | Article Number | Load Weight 5:1 (kg) | Load Weight 4:1 (kg) | Thread | A | B | C | D | E | F | G | H | Max. tightening torque (Nm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ACTEK SHR 1050 | 200.046.924 | 1050 | 1312 | M12 | 22 | 60 | 30 | 19 | 19 | 121 | 89 | 51 | 37 | 1.08 |
| ACTEK SHR 1900 | 200.046.930 | 1900 | 2375 | M16 | 22 | 56 | 30 | 19 | 29 | 121 | 89 | 51 | 80 | 1.12 |
| ACTEK SHR 2150 | 200.046.936 | 2150 | 2687 | M20 | 22 | 52 | 30 | 19 | 34 | 121 | 89 | 51 | 135 | 1.19 |
| ACTEK SHR 3000 | 200.046.942 | 3000 | 3750 | M20 | 36 | 78 | 43 | 25 | 32 | 166 | 131 | 76 | 135 | 3.03 |
| ACTEK SHR 4200 | 200.046.948 | 4200 | 5250 | M24 | 36 | 74 | 43 | 25 | 37 | 166 | 131 | 76 | 311 | 3.1 |
| ACTEK SHR 4200 | 200.046.950 | 4200 | 5250 | M20 | 36 | 1208 | 43 | 25 | 58 | 206 | 131 | 76 | 637 | 3.1 |
WKA-System
A safe and cost reducing installation of a windmill is of increasing importance. Reduce your assembly time and mount your tower segments with our patented ACTEK WKA-System. Whole tower families or different types of towers could be mounted with the WKA-System. It is working on a WKA and WKA-B basis and allows the use of different screw sizes and different distances of the flange holes.
WKA-System
WKA Accessories
WKA-Box
WKA Special Lifting Tools
Each system has a minimum of only four WKA hoist rings for the top flange and two WKA-B hoist rings for the bottom flange. Therefore the system uses the already existing flange holes.
We can reach highest lifting capacities in all lifting angles due to the use of ACTEK hoist rings with a 5:1 safety factor. The hoist rings come with lifting capacities from 7.000 (15400) to 31.500 kg (69.300 lbs.) for each hoist ring. All parts of the WKA system come nickel plated (except screws and nuts). This surface layer protects from corrosion due to humidity and salty air.
The HTS FS-System is a fail-safe colour code system for screws and nuts to prevent the use of bigger nut sizes on smaller screws. Bright colours helps to find them on the ground and helps not to use regular silver screws by mistake.
Challenge us – We are pleased to help you to find the optimum for mounting solutions from hoist rings over snatch blocks to storage boxes.
