Weldable
ACTEK® hoist rings from the USA are distributed by HTS since 2000 throughout Europe. There is a wide field of industries where simple handling of heavy loads are offered by ACTEK hoist rings with capacities from 200 to 44.600 kgs.
Each hoist ring is heat treated and 100% magnetic particle inspected as well as 200% proof load tested. In addition they are tested from independent laboratories and each hoist rings has its own serial number for better traceability for safety inspections. The areas where hoist rings can be used is wide and includes all industries where machines, tools, dies, containers and more have to be lifted for production, mounting, or inspection.

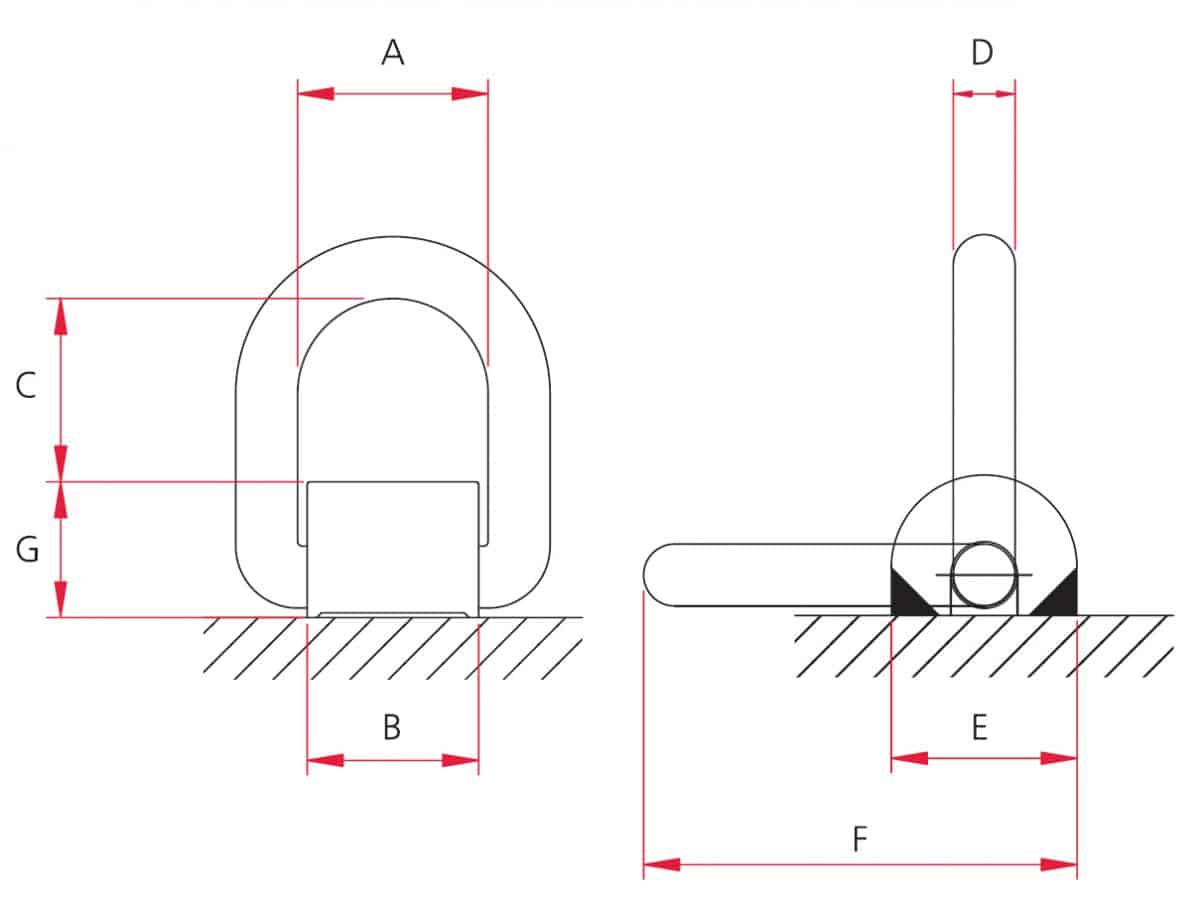

ACTEK WHR-Series
Weldable hoist rings for machinery and automotive industry, swivels 180°.
Read safety instructions! Imperical sizes on request. Technical changes and misconceptions reserved.
ACTEK WHR-Series Specials:
- 4:1 safety factor
- Swivels 180°
- Magnetic partical inspected
- Weldable
| Name | Article Number | Load Weight (kg) | A | B | C | D | E | F | G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| ACTEK WHR 2000 | 200.505.597 | 2.000 | 42 | 38 | 48 | 14 | 40 | 98 | 30 | 0.50 |
| ACTEK WHR 1120 | 200.505.598 | 1.120 | 40 | 36 | 41 | 13 | 38 | 89 | 29 | 0.35 |
| ACTEK WHR 3150 | 200.505.599 | 3.150 | 45 | 43 | 48 | 17 | 42 | 105 | 36 | 0.65 |
| ACTEK WHR 5300 | 200.505.768 | 5.300 | 55 | 50 | 57 | 22 | 60 | 133 | 46 | 1.5 |
| ACTEK WHR 8000 | 200.505.769 | 8.000 | 70 | 65 | 66 | 26 | 70 | 155 | 51 | 2.40 |
| ACTEK WHR 15000 | 200.505.770 | 15.000 | 97 | 90 | 94 | 34 | 90 | 208 | 65 | 6.30 |

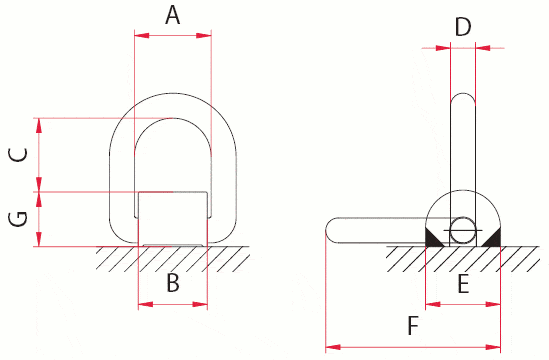

ACTEK WHRS-Series
Weldable hoist rings for machinery and automotive industry, swivels 180°. The WHRS-Series offers an adjusting spring to prevent the hoist ring from falling back in a lying position.
Read safety instructions! Technical changes and misconceptions reserved.
ACTEK WHRS-Series Specials:
- 4:1 safety factor
- Swivels 180°
- Magnetic partical inspected
- Weldable
- With spring
| Name | Article Number | Load Weight (kg) | A | B | C | D | E | F | G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| ACTEK WHRS 1120 | 200.505.991 | 1.120 | 40 | 36 | 41 | 13 | 38 | 89 | 29 | 0.25 |
| ACTEK WHRS 3150 | 200.505.992 | 3.150 | 45 | 43 | 48 | 17 | 42 | 105 | 36 | 0.65 |
| ACTEK WHRS 5300 | 200.505.993 | 5.300 | 55 | 50 | 57 | 22 | 60 | 133 | 46 | 1.50 |
| ACTEK WHRS 8000 | 200.505.994 | 8.000 | 70 | 65 | 66 | 26 | 70 | 155 | 51 | 2.40 |
| ACTEK WHRS 15000 | 200.505.995 | 15.000 | 97 | 90 | 94 | 34 | 90 | 208 | 65 | 6.30 |
| ACTEK WHRS 2000 | 200.505.996 | 2.000 | 42 | 38 | 48 | 14 | 40 | 98 | 30 | 0.50 |
